DPJ-100 Single Layer Roll Feeding Cup Lid Forming Machine

DPJ-145 Single Layer Roll Feeding Bowl Lid Forming Machine

DPJ-200 Single Layer Roll Feeding Super Bowl Lid Forming Machine

The electric furnace of the cup lid forming machine is divided into two sections: preheating and heating; the forming heating plate is automatically closed and opened, and the start-up can be delayed after the heating plate is put down to limit the waste of materials within one stroke. Due to the use of body-fitting heating, the heating power and temperature are reduced, energy is saved and the stability of the plastic sheet is enhanced.

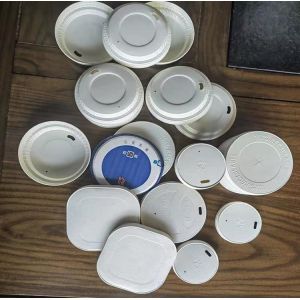

The cup lid forming machine is a processing equipment for plastic products such as disposable cup lids, bowl lids, and food inner packaging boxes.Double-station independent unwinding stand, equipped with automatic lifting function.Two-station electric furnace to increase production speed.The mold is clamped by pressing plate, which is convenient for adjustment and installation.The molding station is equipped with positive and negative pressure devices.

All pneumatic and electrical components of the cup lid forming machine are equipped with medium and high-grade equipment, and the main components are imported.

The host of the cup lid forming machine has stepless speed regulation, the stroke can be adjusted arbitrarily, it is easy to replace the mold, the manipulator is pulled, and the operation is reliable.According to the needs of the product, positive pressure forming or negative pressure forming can be selected in the equipment to achieve the best forming effect.Low power consumption for plate heating production, small footprint, economical and practical.

Technical Parameters

Customs code: 8441309000

Paper cover specifications:

height (8-15) mm, DPJ-100/S100 diameter (60 -100) mm, speed: (70-100) pieces per minute.

Height (8-15) mm, DPJ-145/S145 straight strength (100-140) speed: (60-75) per minute.

Height (8-15) mm, DPJ-200/S200 diameter (140 -200) mm, speed: (45-60) pieces/min

Applicable paper: single and double PE/PLA coated paper, coated paper, glazing coated paper (250-480g/m2)

Power: 10kw

Power supply: AC380V 3-phase, 50Hz (can be customized according to customers)

Working air source: air consumption 0.02 cubic meters per minute, working air pressure 0.3MPa

The total weight of the equipment: Cup lid machine .2100KG.

Bowl cover machine.2500KG.

Giant bowl machine 3300KG.

Cup lid machine packaging size 1920*1640*2000

Bowl cover machine packaging size 2200*1880*2100

Giant bowl lid machine packaging size 2600*1850*2200
